Hydraulic Workover
Hydraulic Workover or Snubbing (HWO) as it is sometimes referred to is a well intervention method which has been in existence for many years.
Principle of Operation
HWO is a live well intervention service using a 'jointed pipe', hydraulic 'jacking ram' to push or 'snub' the pipe into the well against the well pressure. Once the desired well depth is reached many operations can be performed but most importantly the pipe can be rotated, and large volumes of fluids circulated through the pipe. This makes HWO ideally suited for milling / drilling and large clean out operations of sand, scale and general fill.
Applications
HWO units are available in several sizes with the smaller units focused on thru-tubing applications and the medium and larger sized units used for production tubing and large work string applications. Coiled Tubing has replaced HWO for most of the thru-tubing operations due to increased efficiencies. HWO is now generally used for 'heavy duty' well operations on both live and dead wells and typically include:
Large volume cleanouts, sand removal bailingand scale milling operations
Production tubing repair / change out operations (where well kill may not be desired)
Heavy duty fishing operations (where large pulling or set-down forces and pulling weights are forecast)
Large perforating operations (where perf guns exceed the weight limits of wireline)
Well killing operations
Equipment

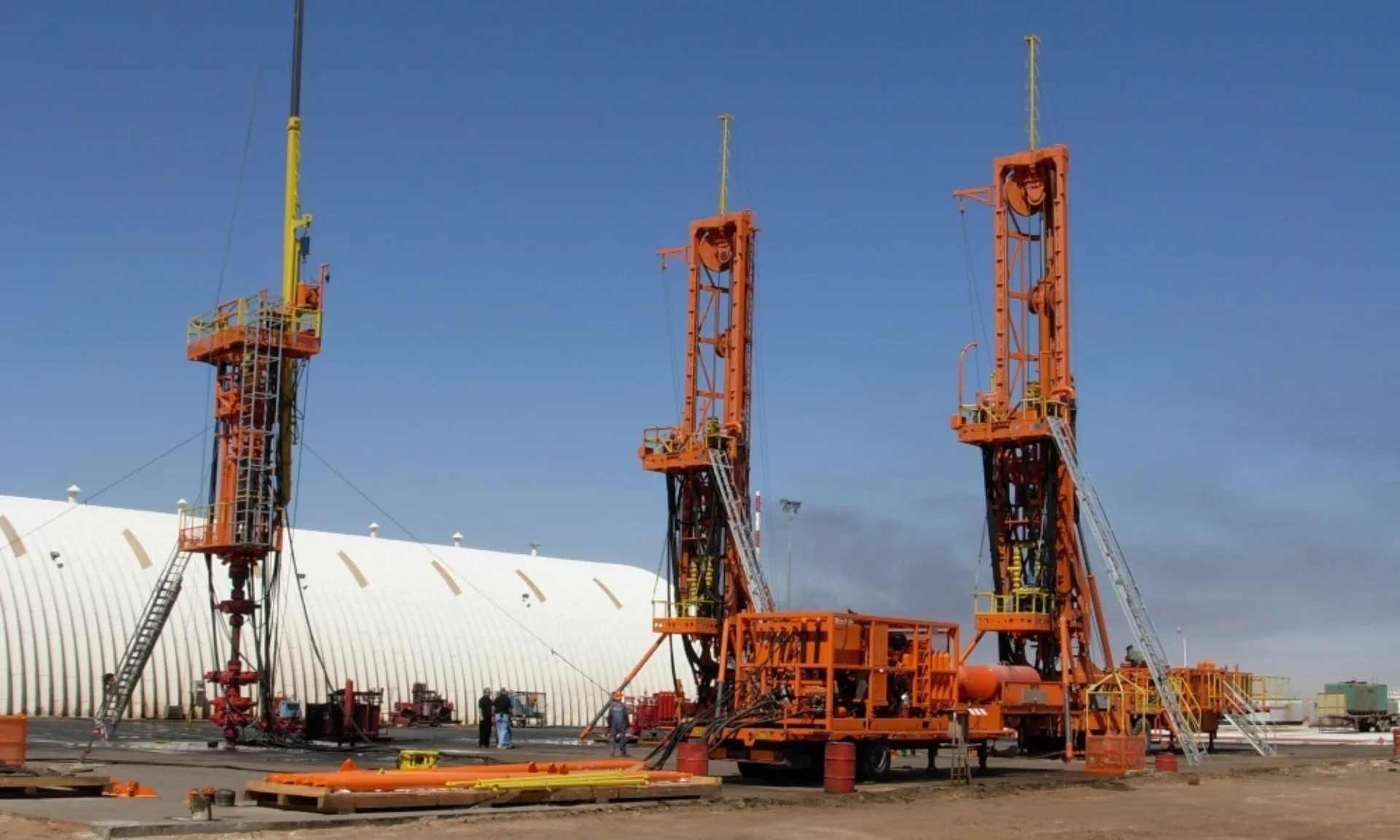

HWO equipment is unitized and very mobile with regard to transportation, storage and rig up and rig down operations. This makes it an excellent selection for well servicing operations in both offshore and remote locations. The 'package' will consist of:
Mast unit including guying system to handle the jointed pipe
Work basket and hydraulic jacking ram assembly
BOPS including stripper rams and work rams
High pressure riser assembly
Pipe handling / pipe make up equipment
Pipe rack / laydown area
Fluid pumping system / storage tanks & surface pipework
